Choose Plain Weave Wire Mesh? Offer Material, Mesh Count, Wire Dia., Width, Qty.

Name: Choose Plain Weave Wire Mesh Offer Material Mesh Count Wire Dia Width Qty
Brand: Tenglu
Price: 1 USD

Choose Plain Weave Wire Mesh? Offer Material, Mesh Count, Wire Dia., Width, Qty. Manufactures

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 5rolls

Payment Terms : T/T, L/C at sight, Western Union

Delivery Time : Generally in 25days.

Packaging Details : Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.

Material : Stainless Steel 201, 202, 301, 302, 304, 304L, 316, 316L, 321

Weave Type : Plain Weave

Mesh/Inch : 1-500

Aperture : 23.8mm-0.025mm

Width : Generally 36", 48", 1.0m, 1.2m, 1.5m to 6.0m

Length : Generally 100ft, 30m, 50m to 60m

Certification : ISO9001:2015

Contact Now

Stainless Steel Plain Weave Wire Mesh

Production Low of Stainless Steel Woven Meshes: 1) Receiving Raw Material(Stainless Steel) → 2) Drawing Wire → 3) Annealing → 4) Inspection → 5) Warping → 6) Mesh Weaving → 7) Inspection of Finished Mesh Goods → 8) Finished Mesh Goods into Warehouse → 9) Packing 10) Delivery.

Woven wire is versatile and easily adapted to special uses and conditions. It is fabricated from drawn or rolled sections in standard or special materials. In open mesh constructions such as partitions, guards and grilles, it has long been accepted and specified for outstanding quality and durability. Woven wire in the above form and construction, being mostly portable, is unexcelled where conditions such as ventilation, lighting, vision and fire-proofed materials are prime requisites. Stainless steel mesh is used use on a oil catch muffler for vacuum trucks. Woven wire of any gauge from fine to coarse can meet the particular need of any open mesh requirement that may be presented to the fabricator.

Materials: Stainless Steel 201, 202, 301, 302, 304, 304L, 316, 316L, 321.

Stainless Steel Chemical Composition
AISI	C	Si	Mn	P	S	Cr	Mo	Ni	Other
201	≤0.15	1.00	5.5-7.5	≤0.06	≤0.03	16-18	-	3.5-5.5	N≤0.25
202	≤0.15	≤1.00	7.5-10.0	≤0.06	≤0.03	17-19	-	4.0-6.0	N≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16-18	-	6.0-8.0
302	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	17-19	-	8.0-10.0
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	18-20	-	8.0-10.5
304L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	18-20	-	9.0-13.0
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16-18	2-3	10.0-14.0
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16-18	2-3	12.0-15.0
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17-19	-	9.0-13.0	≥5×C

Terminology of Woven Wire Mesh(Glossary of Terms):

Choose Plain Weave Wire Mesh? Offer Material, Mesh Count, Wire Dia., Width, Qty.

1) Warp-The wires running lengthwise in a mesh.

2) Weft(Shute)-The wires running transversely across the mesh width.

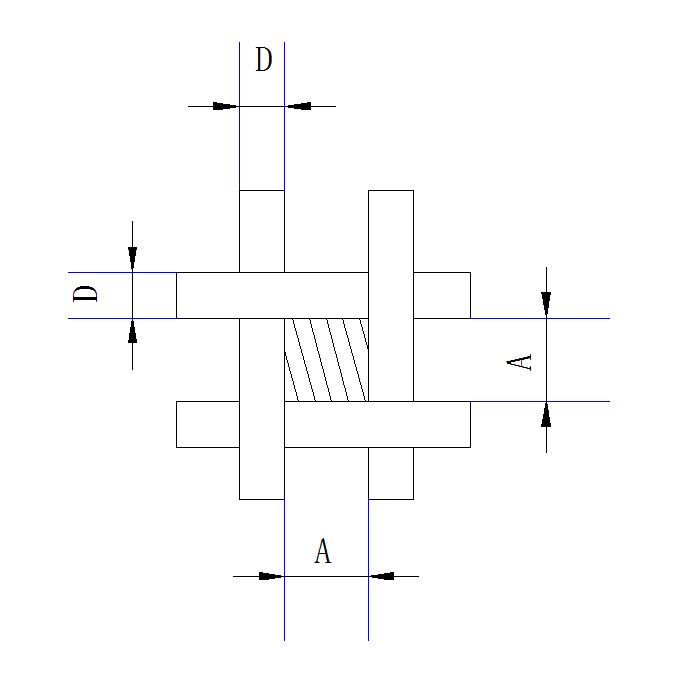

3) Aperture-The aperture is the size of the openings in the mesh, ie the distance between two adjacent warp or weft wires. Aperture (mm) = 25.4/Mesh - Wire Diameter

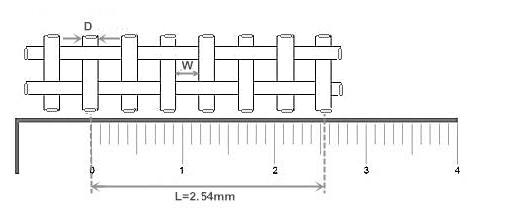

4) Mesh Count-The number of apertures or wires in a linear inch. Mesh Count= 25.4/(a+d). Such as 80mesh, indicates that in one inch there are 80 openings.

Choose Plain Weave Wire Mesh? Offer Material, Mesh Count, Wire Dia., Width, Qty.

5) Open Area-The proportion of aperture expressed as a percentage of the whole area. Open area (%) = a²/(a+d)² x 100.

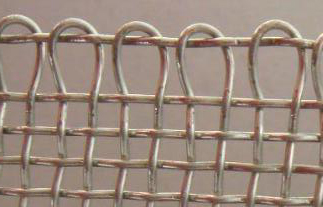

6) Selvedge- The finished edge formed by looped weft wires at either side of the mesh.

Choose Plain Weave Wire Mesh? Offer Material, Mesh Count, Wire Dia., Width, Qty.

7) SWG-Standard Wire Gauge, a numbering system for standard wire diameters.

Weaving Type: Plain weave.
Choose Plain Weave Wire Mesh? Offer Material, Mesh Count, Wire Dia., Width, Qty.
Plain weave wire mesh, wire diameters of warp and weft wire are of equal size, and each warp wire passes alternately over and under each weft wire running horizontally through the cloth at 90 degree angles.

Features:

Square aperture, high flow through, relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63µm. Corrosion resistance, mechanical properties, physical properties and fabricability. Improve finish paper quality including evenness, gram weight and aspect tension ratio. Reduction in the amount of water carry-over from the inside of mould. Reducing the effect of centrifugal force.

Applications:

The wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry, aerospace/aircraft industry, and pharmaceutical industry.

Specifications:

Mesh/Inch	Wire Diameter		Aperture		Open Area
Mesh/Inch	Inch	MM	Inch	MM	Open Area
1 × 1	0.080	2.03	0.920	23.37	84.6
2 × 2	0.063	1.60	0.437	11.10	76.4
3 × 3	0.054	1.37	0.279	7.09	70.1
4 × 4	0.063	1.60	0.187	4.75	56.0
4 × 4	0.047	1.19	0.203	5.16	65.9
5 × 5	0.041	1.04	0.159	4.04	63.2
6 × 6	0.035	0.89	0.132	3.35	62.7
8 × 8	0.028	0.71	0.097	2.46	60.2
10 × 10	0.025	0.64	0.075	1.91	56.3
10 × 10	0.020	0.51	0.080	2.03	64.0
12 × 12	0.023	0.584	0.060	1.52	51.8
12 × 12	0.020	0.508	0.063	1.60	57.2
14 × 14	0.023	0.584	0.048	1.22	45.2
14 × 14	0.020	0.508	0.051	1.30	51.0
16 × 16	0.018	0.457	0.0445	1.13	50.7
18 × 18	0.017	0.432	0.0386	0.98	48.3
20 × 20	0.020	0.508	0.0300	0.76	36.0
20 × 20	0.016	0.406	0.0340	0.86	46.2
24 × 24	0.014	0.356	0.0277	0.70	44.2
30 × 30	0.013	0.330	0.0203	0.52	37.1
30 × 30	0.012	0.305	0.0213	0.54	40.8
30 × 30	0.009	0.229	0.0243	0.62	53.1
35 × 35	0.011	0.279	0.0176	0.45	37.9
40 × 40	0.010	0.254	0.0150	0.38	36.0
50 × 50	0.009	0.229	0.0110	0.28	30.3
50 × 50	0.008	0.203	0.0120	0.31	36.0
60 × 60	0.0075	0.191	0.0092	0.23	30.5
60 × 60	0.007	0.178	0.0097	0.25	33.9
70 × 70	0.0065	0.165	0.0078	0.20	29.8
80 × 80	0.0065	0.165	0.0060	0.15	23.0
80 × 80	0.0055	0.140	0.0070	0.18	31.4
90 × 90	0.005	0.127	0.0061	0.16	30.1
100 × 100	0.0045	0.114	0.0055	0.14	30.3
100 × 100	0.004	0.102	0.0060	0.15	36.0
100 × 100	0.0035	0.089	0.0065	0.17	42.3
110 × 110	0.0040	0.1016	0.0051	0.1295	30.7
120 × 120	0.0037	0.0940	0.0064	0.1168	30.7
150 × 150	0.0026	0.0660	0.0041	0.1041	37.4
160 × 160	0.0025	0.0635	0.0038	0.0965	36.4
180 × 180	0.0023	0.0584	0.0033	0.0838	34.7
200 × 200	0.0021	0.0533	0.0029	0.0737	33.6
250 × 250	0.0016	0.0406	0.0024	0.0610	36.0
270 × 270	0.0016	0.0406	0.0021	0.0533	32.2
300 × 300	0.0051	0.0381	0.0018	0.0457	29.7
325 × 325	0.0014	0.0356	0.0017	0.0432	30.0
400 × 400	0.0010	0.0254	0.0015	0.370	36.0
500 × 500	0.0010	0.0254	0.0010	0.0254	25.0

Packing:
