Five-Heddle Weave Wire Mesh, Special Weaving Type Mesh for Filtration

Five Heddle Woven Stainless Steel Wire Cloth

Five heddle weaving type belongs to one of dutch weaving techniques.

Material: SS304, SS304L, SS316, SS316L.

Weave Type:

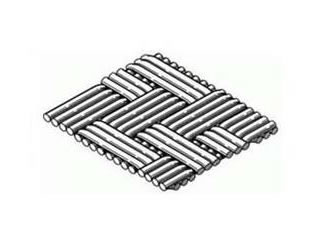

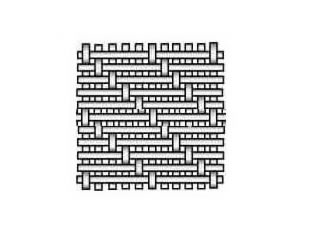

Each warp wire alternately goes under and above each one and four weft wires, and each weft wire goes under and above each one and four warp wires alternately;

Each warp wire alternately goes under and above each two and three weft wires, and each weft wire goes under and above each two and three warp wires alternately.

Features:

Five-Heddle Weave Wire Mesh offers high flow rates and it is suitable for high mechanical loads, featuring a lightly structured mesh surface.

Five heddle weaving style makes it possible to produce open meshes with high flow rates combined with great mechanical stability. It creates a smooth surface for easy removal of filter cake and trouble-free cleaning of the filter media. Five-Heddle cloths have proven especially applicable in drum filter equipment and in disc filters where the build up of the filter cake, the removal and the cleaning are performed in continuous cycles.

Applications:

Five heddle weave offers high flow rates and is suitable for high mechanical loads, featuring a lightly structured mesh surface. Five-heddle woven meshes are popular in applications including pressure and vacuum filters as well as filter candles. Widely used in drainage filtration, liquid filtration, undercurrent filtration and be also suitable for dehydration in paper-making and chemical fillers.

Specifications

Other size according to your requirements.

Packing: wrapped with moister-proof paper, then in wooden cases.

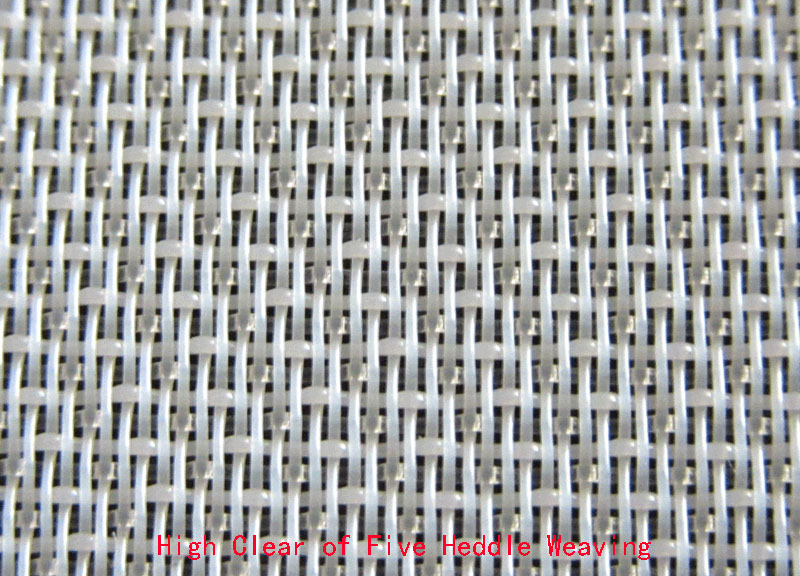

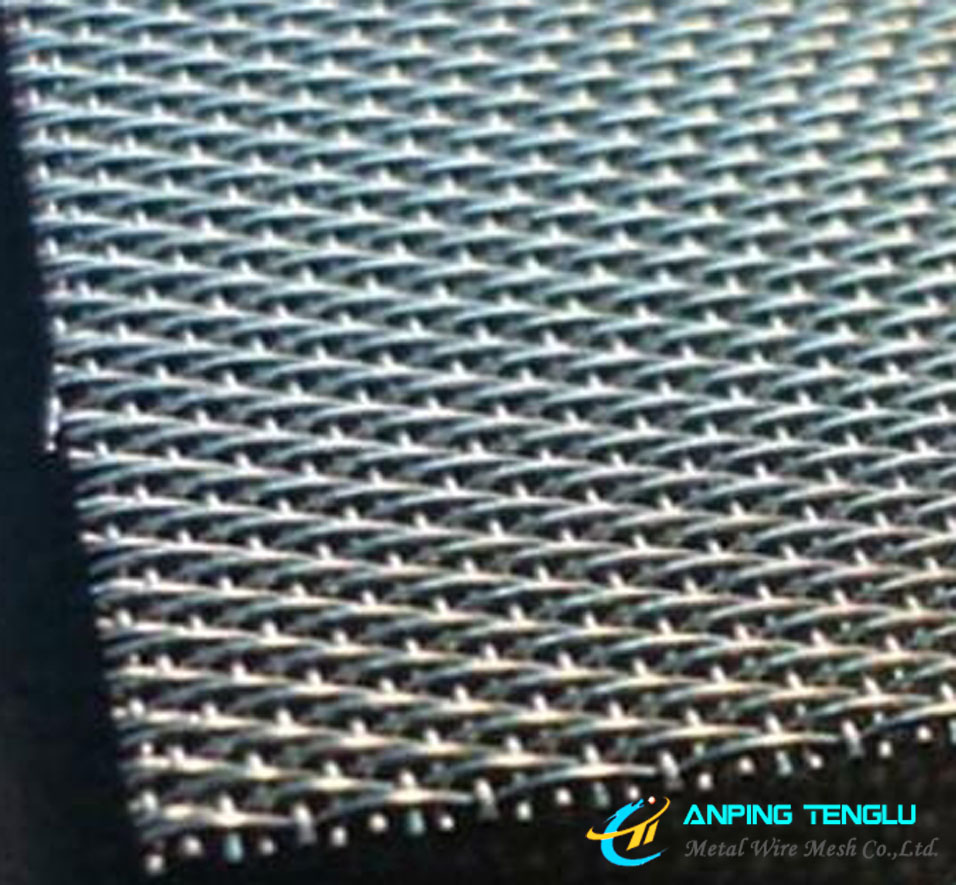

Five-Heddle Weave Wire Mesh, Special Weaving Type Mesh for Filtration Images
