Stainless Steel Reverse Dutch Woven Cloth, 132x30, 0.2/0.4mm(China Factory)

Product Categories
Anping Tenglu Metal Wire Mesh Co., Ltd.
Contact Now

Stainless Steel Reverse Dutch Woven Cloth, 132x30, 0.2/0.4mm(China Factory)

  • 1
  • 2
  • 3

Place of Origin : Hengshui

Brand Name : Tenglu

Certification : ISO9001:2015

MOQ : 5rolls

Price : Negotiable

Packaging Details : each roll with polyfilm with water proof paper outside/wooden pallets

Delivery Time : According to required quantity.

Payment Terms : T/T, L/C at sight

Material : Stainless Steel 904L Wire

Type : Wire Cloth

Application : Woven Wire Mesh

Weave Style : Reserve Dutch Weave

Wire Diameter : 0.2/0.4mm

Max Width : 1.0m

Contact Now

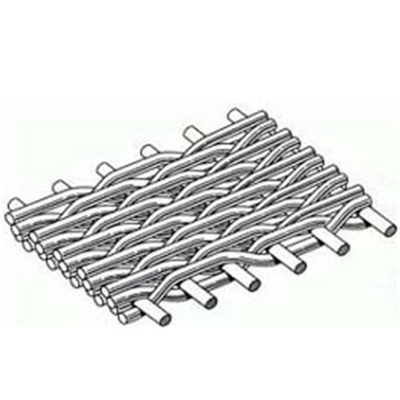

Stainless steel reverse dutch wire mesh is also called reverse dutch wire cloth. Compared with standard dutch weaving, reverse dutch weaving has thicker warp wires and less weft wires. Reverse dutch woven wire cloth offers finer filtration and widley used in petroleum, chemical, food and pharmacy.

Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse dutch weaving patterns.

Features: Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. It also has fine filtration and highly durable construction.

Stainless Steel Reverse Dutch Woven Cloth, 132x30, 0.2/0.4mm(China Factory)

Commen Specifications

Plain Weave Dutch Wire Mesh
Model Mesh/Inch(Warp x Weft)

Wire Diameter

(Warp x Weft)

Reference Aperture

(um)

Weight/sq.mt

(kg)
32# 8 x 62 0.63mm x 0.45mm 300 5.42
40# 10 x 79 0.50mm x 0.355mm 250 3.16
48# 12 x 64 0.58mm x 0.40mm 280 2.9
55# 14 x 88 0.40mm x 0.30mm 180 2.54
76# 19 x 140 0.315mm x 0.20mm 140 1.88
80# 20 x300 0.35mm x 0.20mm - 3.6
95# 24 x 110 0.355mm x 0.25mm 120 2.45
100# 25 x 140 0.28mm x 0.20mm 100 1.95
120# 30 x 150 0.25mm x 0.18mm 80 1.68
140# 35 x 175 0.224mm x 0.16mm 71 1.52
160# 40 x 200 0.20mm x 0.14mm 60 1.4
180# 45 x 250 0.16mm x 0.112mm 56 1.09
200# 50 x 250 0.14mm x 0.11mm 53 1.04
220# 55.5 x 280 0.14mm x 0.10mm 50 0.92
240# 65 x 330 0.11mm x 0.08mm 36 0.71
280#(1) 70 x 350 0.11mm x 0.08mm 35 0.72
280#(2) 70 x 385 0.11mm x 0.07mm 32 0.75
300# 78 x 700 0.11mm x 0.08mm 30 1.39
315#(1) 80 x 400 0.10mm x 0.065mm 40 0.62
315#(2) 80 x 600 0.10mm x 0.06mm - -
315#(3) 80 x 800 0.15mm x 0.04mm - -
320# 81 x 780 0.10mm x 0.07mm 30 1.22
354# 90 x 550 0.12mm x 0.05 - -
Roll Width: 0.5-1.6m

Commen Specifications

Twill Weave Dutch Wire Mesh
Gauge No Mesh/Inch(Warp x Weft)

Wire Diameter

(Warp x Weft)

Reference Aperture

(um)

Weight/sq.mt

(kg)
360# 91 x 787 0.10mm x 0.07 25 1.24
400# 101 x 900 0.10mm x 0.063 20 1.22
472# 120 x 400 0.10mm x 0.075 - -
500# 127 x 1100 0.07mm x 0.05 17 0.81
630# 160 x 1500 0.063mm x 0.04 15 0.62
650#(1) 165 x 400 0.071mm x 0.06 - -
650#(2) 165 x 600 0.071mm x 0.05 - -
650#(3) 165 x 800 0.071mm x 0.05 25 -
650#(4) 165 x 1100 0.071mm x 0.045 - -
650#(5) 165 x 1400 0.071mm x 0.04 16 0.76
685# 174 x 1700 0.063mm x 0.032 13 0.61
787#(1) 200 x 600 0.071mm x 0.06 - -
787#(2) 200 x 800 0.071mm x 0.05 - -
787#(3) 200 x 1400 0.071mm x 0.04 12 0.8
795# 202 x 1760 0.05mm x 0.032 10 0.6
850# 216 x 1860 0.045mm x 0.030 9 -
1000# 254 x 2000 0.04mm x 0.028 8 0.5
1125# 285 x 2235 0.036mm x 0.025 7 -
1228# 312 x 2100 0.035mm x 0.025 - -
1250# 318 x 2235 0.036mm x 0.025 - -
1280# 325 x 2300 0.035mm x 0.025 5 0.45
1575# 400 x 3100 0.035mm x 0.019 3 -
Roll Width: 0.5-1.6m

Othere specifications according to your requests.
